CONSPIT CSD 5″ Dashboard Dash Display – LCD with RGB LEDs for Conspit ARES – Simagic – Fanatec – Simucube Wheel Bases
CONSPIT CSD Dashboard – SimHub Compatible

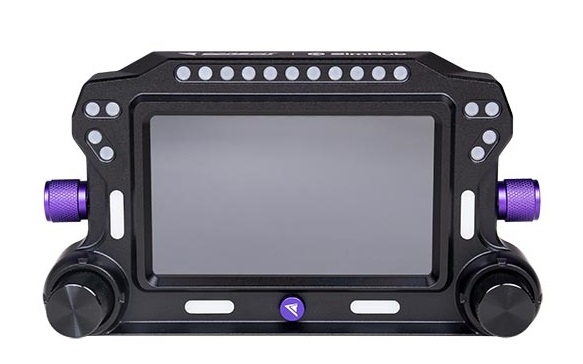

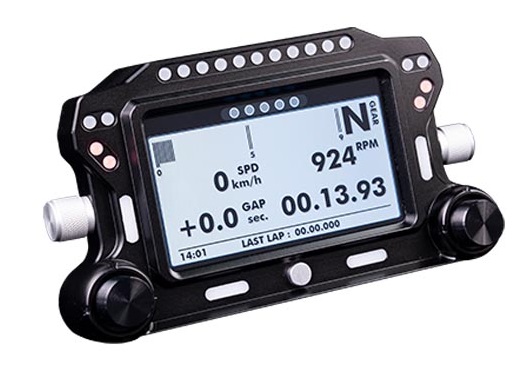

The CONSPIT CSD Dashboard is an advanced display unit designed for sim racing, featuring a high-resolution 5-inch IPS screen as its primary display area. This screen displays all vehicle and race status information via the SimHub software. On the front and side of the dashboard are two sets of physical knobs (encoders), which facilitate quick page switching and brightness adjustment, and also serve as additional in-game control inputs.

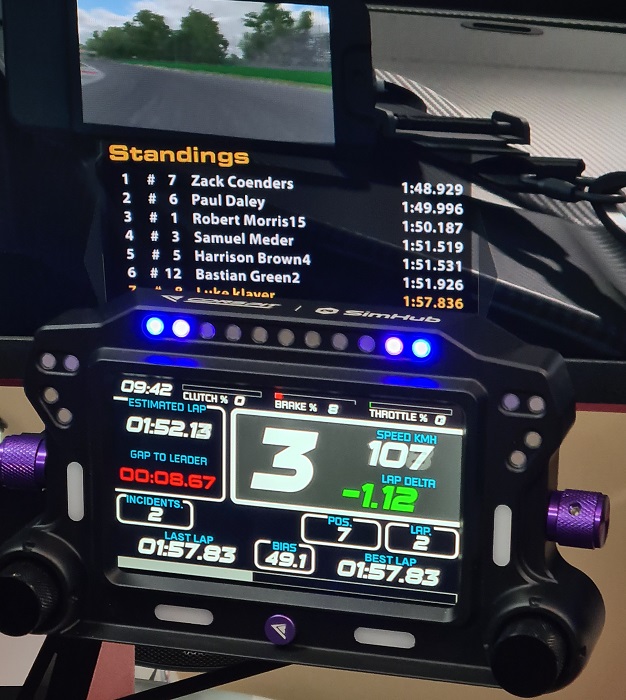

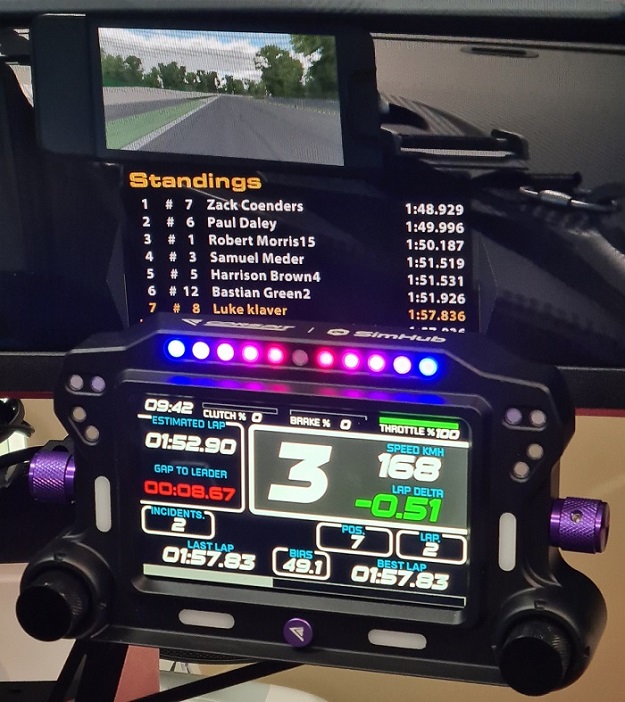

The RPM and flag indicator areas are designed to maintain consistency with modern GT racing cars. Additionally, LED lights have been added on both sides and below the screen, tailored to the needs and preferences of sim racing enthusiasts, offering a richer display of radar, race session information, and more. CONSPIT and SimHub have collaborated to create a variety of ready-to-use dashboard interfaces and preset function profiles based on in-game telemetry. All screen content and gauge functions can be customized at any time through SimHub.
Highlighted Features:
- Full Integration with SimHub: CONSPIT maintains a close collaboration with SimHub to continually expand the product’s capabilities. The CSD dashboard display unit is fully supported within SimHub software, offering ready-to-use presets for dashboard interfaces, telemetry indicators, and more.
- 5-inch High-Resolution IPS Touchscreen: Equipped with a 5-inch IPS touchscreen with 854 x 480 resolution and 350 lumens of brightness, providing a clear, high-quality display with vibrant colors. The screen brightness can be quickly adjusted with the knob located on the top right side to adapt to the ambient lighting during gaming.
- Segmented Functional Indicator Lights: The CSD dashboard features four segmented indicator light areas around the display, integrating 31 customizable LEDs that can be configured to display a variety of information. The dynamic lighting effects allow drivers to focus on driving without diverting their attention from the instrument panel.

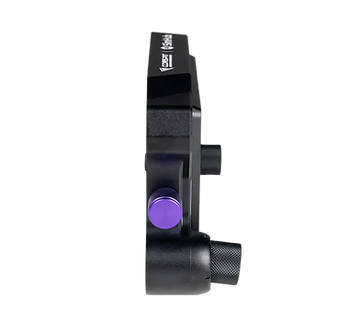

- Multidimensional Interactive Experience: The CSD offers two sets of physical knobs and a touchscreen. The knobs on either side allow for quick adjustments to the LED lights and display brightness, while the larger knob switches between dashboard pages. The touchscreen makes switching between auxiliary dashboard pages easier.
- Competition Grade Aluminum Housing: CNC machined from 6061-T6 aluminum alloy, the housing features an anodized and sandblasted finish to ensure durability and strength.
- CONSPIT Aesthetic Style: With a focus on precision and modernity, CONSPIT’s design philosophy seeks to seamlessly integrate modern technology with the aesthetics of the automotive industry, and the CSD dashboard exemplifies this vision.
- Dual Data Interface: The dashboard is equipped with two data ports on the rear, allowing users to choose the appropriate port based on their preferred mounting method, making it easy to fully configure your simulation cockpit

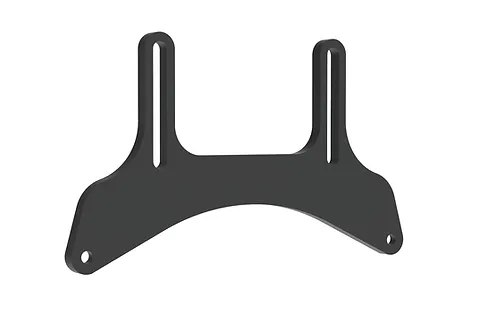

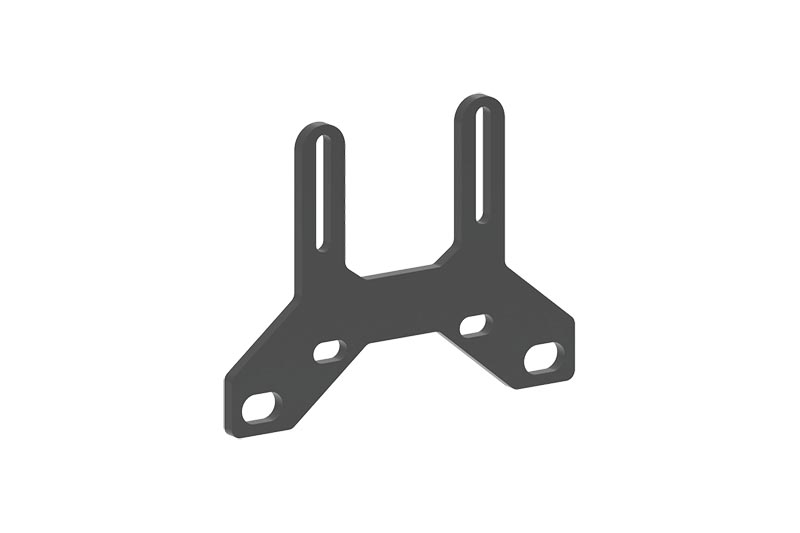

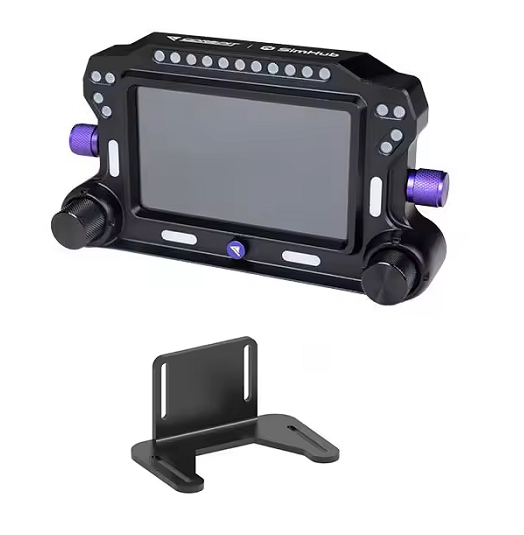

- Mounts Supplied: Mounts to suit most major wheel base brands are supplied as well as a right angle mount bracket for fitting to Extrusion Rigs.All included in the package
Specs:
- Display: 5 inches, 854 x 480 resolution, 350 lumens, adjustable brightness.
- Indicators: 31 RGB LEDs.
- Size: 191 x 107 x 43 mm.
- Main Material: Aluminum Alloy.
- Mounting Method: Aluminum Bracket with Threaded Hole on the Back.
- Platform: PC.
- Connection: Direct USB.
- Cable: USB cable.
- Software: SimHub.
Mounting on your Steering Wheel Base:
- Fanatec: DD1, DD2, CSL, CSL DD.
- Simucube: Sport, Pro.
- Simagic: Alpha mini, Alpha, Alpha U
- Package Included:
– 1 x Set of SIM Racing Dash
Packaging Details:
– G.W.: 1.2 kg.
